320kg Force Drive Residential Home Elevators For Modern Building

  • 1
  • 2

Brand Name : SUNNY

Model Number : Villa Elevator

Certification : CE,ISO9001

Place of Origin : China

MOQ : 1set

Price : $7000~12000

Payment Terms : L/C, T/T, Western Union

Supply Ability : 500 Set/ Year

Delivery Time : 15~30 days

Packaging Details : container

Name : Villa Elevator

Load : 260~400kg

Speed : 0.4m/S

Power Supply : 3 Phase, 380V, 50Hz

Lighting Supply : 1 Phase, 220V, 50Hz

Application : Home Usage

Elevator type : Steel band style home elevator

Material : Stainless Steel 304

Model : Home Elevators

Type : Home Elevators

Product name : Home Elevators

Contact Now

320kg Force Drive Style Home Elevator Lift For Modern Building



Load(kg) 260 320 400
Rated speed(m/s) 0.4 0.4 0.4
Car size(mm) 800x1100 900x1200 1000x1300
Door-opening size(mm) 700x2000 800x2000 800x2000
Door-opening modes center center side
Shaft size(mm) 1200x1450 1300x1550 1400x1650
Pit depth(mm) 400 400 400
Overhead height 3200 3200 3200
Force(KN) R1 30 32 36
Force(KN) R2 28 30 34
Force(KN) R3 10 12 15
Force(KN) R4 33 37 42

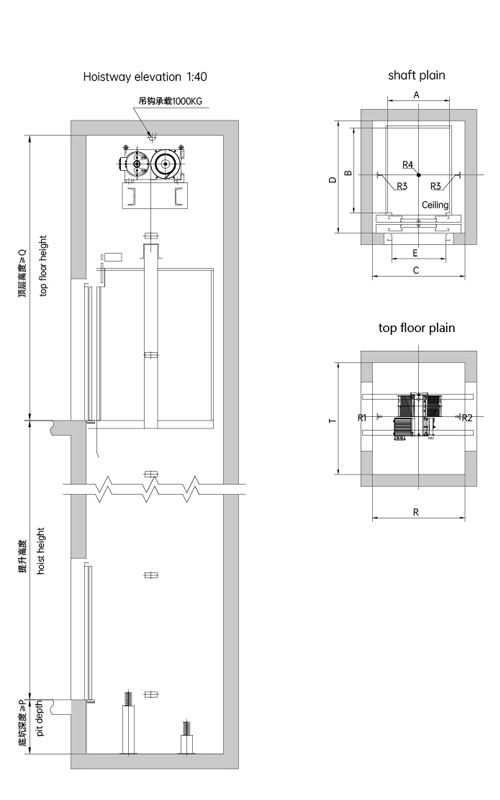

Force drive home elevator construction sketch



320kg Force Drive Residential Home Elevators For Modern Building



320kg Force Drive Residential Home Elevators For Modern Building



320kg Force Drive Residential Home Elevators For Modern Building



320kg Force Drive Residential Home Elevators For Modern Building



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
