1000kg VVVF Drive Sightseeing Panoramic Elevator Lift For Shopping Mall

Name: 1000kg VVVF Drive Sightseeing Panoramic Elevator Lift For Shopping Mall
Brand: SUNNY
Price: 7000 USD

Buy cheap 1000kg VVVF Drive Sightseeing Panoramic Elevator Lift For Shopping Mall product

Brand Name : SUNNY

Model Number : Panoramic Elevator

Certification : CE,ISO9001

Place of Origin : China

MOQ : 1 set

Price : $7000~12000

Payment Terms : L/C, T/T, Western Union

Supply Ability : 500 Set/ Year

Delivery Time : 15~30 days

Packaging Details : container

Name : Panoramic Elevator

Load : 630-1000kg

Style : Sightseeing Panoramic Elevator Lift

Control system : VVVF drive

Drive Type : AC

Material : Glass/Etching/Stainless steel

Usage : Sightseeing Elevators

Product name : Sightseeing Panoramic Elevator Lift

Model : Sightseeing Panoramic Elevator Lift

Contact Now

Elevator 630KG-1000KG MR Round Sightseeing Panoramic Glass Elevator Lift

1000kg VVVF Drive Sightseeing Panoramic Elevator Lift For Shopping Mall

Panoramic Elevator Cabin

Front Wall: Hairline Stainless Steel + Laminated Safety Glass
Car Walls: Hairline Stainless Steel + Laminated Safety Glass
Ceiling: Acrylic lighting plate, LED light

Handrail: Hairline Stainless Steel Pipe
Floor: PVC/ optional Marble

Persons	Load (kg)	Speed (m/s)	Net size of car(mm) C.WxC.DxD.H	Net size of door(mm) 2P Center opening	Shaft size(mm)			Machine room size(mm)
					H.WxH.D	HR.H	PIT	MR.WxMR.D	MR.H
8	630	1.0	1100x1600x2300	700x2100	2200x2185	4500	1500	2200x2185	2500
		1.5/1.75				4700	1600
10	800	1.0	1200x1800x2300	800x2100	2300x2355	4500	1500	2300x2355	2500
		1.5/1.75				4700	1600
		2.0				4900	1800
		2.5				5100	2000
13	1000	1.0	1300x1950x2300	900x2100	2400x2535r	4500	1500	2400x2535	2500
		1.5/1.75				4700	1600
		2.0				4900	1800
		2.5				5100	2000

1000kg VVVF Drive Sightseeing Panoramic Elevator Lift For Shopping Mall

FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.

Product Tags:

VVVF Drive Panoramic Elevator

Sightseeing Panoramic Elevator

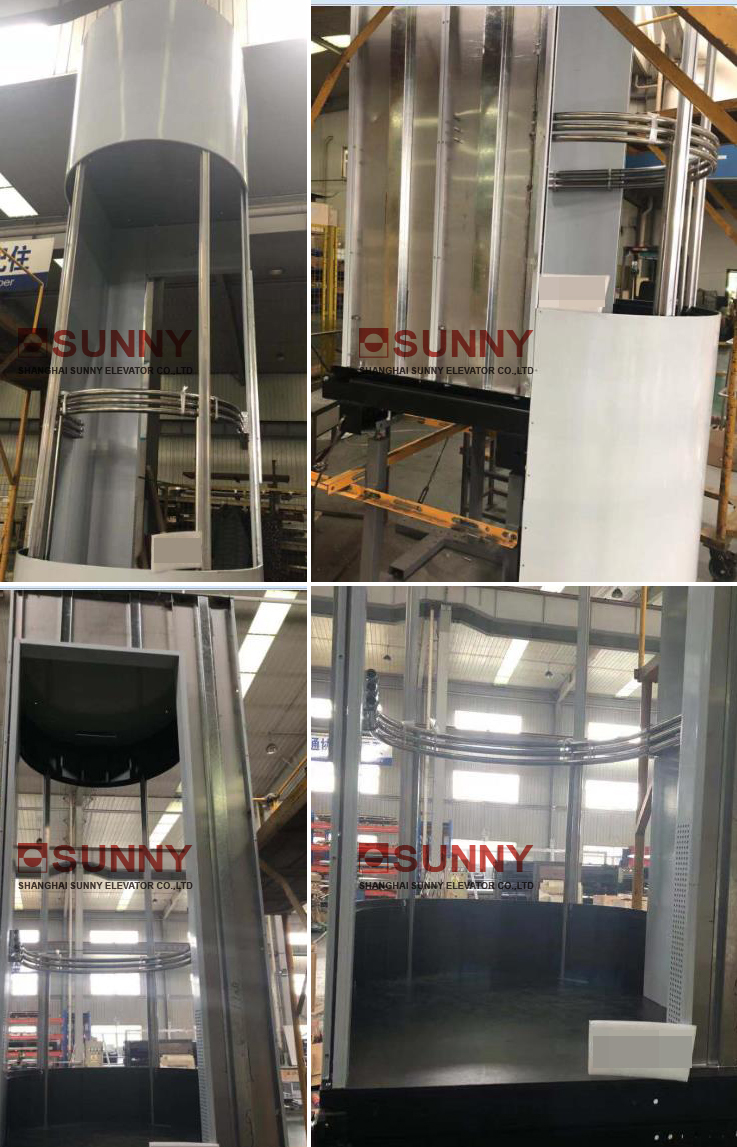

1000kg VVVF Drive Sightseeing Panoramic Elevator Lift For Shopping Mall Images
